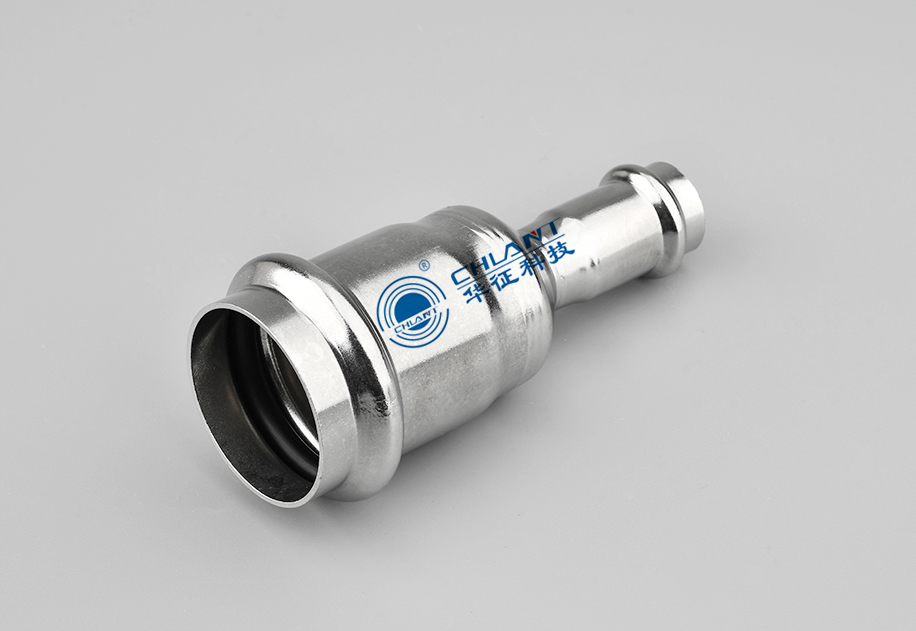

异径对接规格参数
| 产品代码 |
公称尺寸DN |
I系列外径(mm) |
II系列外径(mm) |
| JFC(R)-2015 |
20×15 |
20×16 |
22.2×15.88 |
| JFC(R)-2515 |
25×15 |
25.4×16 |
28.6×15.88 |
| JFC(R)-2520 |
25×20 |
25.4×20 |
28.6×22.2 |
| JFC(R)-3215 |
32×15 |
32×16 |
34×15.88 |
| JFC(R)-3220 |
32×20 |
32×20 |
34×22.2 |
| JFC(R)-3225 |
32×25 |
32×25.4 |
34×28.6 |
| JFC(R)-4015 |
40×15 |
40×16 |
42.7×15.88 |
| JFC(R)-4020 |
40×20 |
40×20 |
42.7×22.2 |
| JFC(R)-4025 |
40×25 |
40×25.4 |
42.7×28.6 |
| JFC(R)-4032 |
40×32 |
40×32 |
42.7×34 |
| JFC(R)-5015 |
50×15 |
50.8×16 |
48.6×15.88 |
| JFC(R)-5020 |
50×20 |
50.8×20 |
48.6×22.2 |
| JFC(R)-5025 |
50×25 |
50.8×25.4 |
48.6×28.6 |
| JFC(R)-5032 |
50×32 |
50.8×32 |
48.6×34 |
| JFC(R)-5040 |
50×40 |
50.8×40 |
48.6×42.7 |
| JFC(R)-6032 |
60×32 |
63.5×32 |
/ |
| JFC(R)-6532 |
65×32 |
76.1×32 |
76.1×34 |
| JFC(R)-6550 |
65×50 |
76.1×50.8 |
76.1×48.6 |
| JFC(R)-6560 |
65×60 |
76.1×63.5 |
/ |
| JFC(R)-8050 |
80×50 |
88.9×50.8 |
88.9×48.6 |
| JFC(R)-8060 |
80×60 |
88.9×63.5 |
/ |
| JFC(R)-8065 |
80×65 |
88.9×76.1 |
88.9×76.1 |
| JFC(R)-10050 |
100×50 |
101.6×50.8 |
108×48.6 |
| JFC(R)-10065 |
100×65 |
101.6×76.1 |
108×76.1 |
| JFC(R)-10080 |
100×80 |
101.6×88.9 |
108×88.9 |
